Auto-mating D-connectors

Mike Shellim, 12 December 2002

The Problem

The servo leads in your F3F ship are a pain to connect up. Especially when your hands are cold and it's blowing a gale...



No more flying leads

Construct a housing for the D-connector so it  mates automatically when the wing is bolted in place.

Step 1: Cut some lugs and posts from wood and g/f circuit board.



Step 2:
Epoxy lugs to posts.



Step 3:
Drill lugs, then bolt D-Connector to lugs.



Step 4:

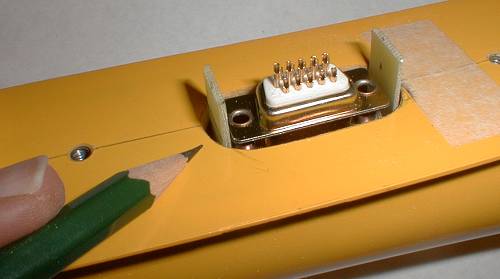

Trial fit with male connector plugged in, and mark posts where male connector is flush with wing seat..



Step 5:

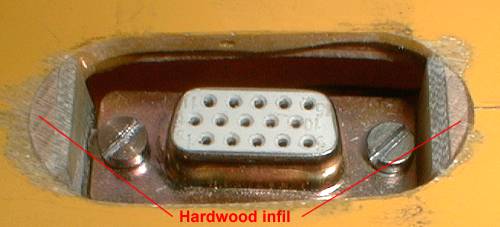

Cut off excess from posts, epoxy in place and when cured file flush with wing seat. Note hardwood infill.



Step 6:
The male connector is simply taped in place under the wing.



And that's it.
